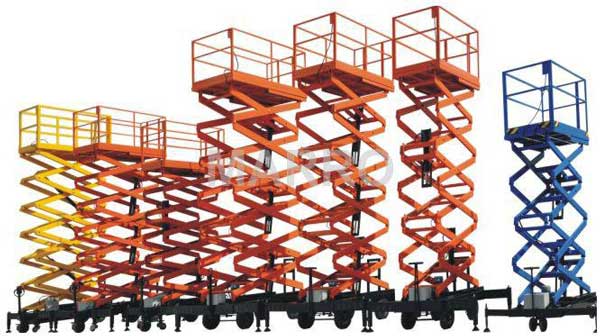

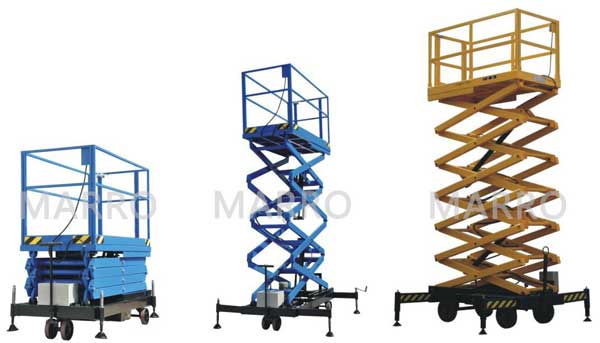

剪叉式高空作业平台
剪叉式高空作业平台是用途广泛的高空作业专业设备。 他的剪叉式机械结构,使升降机升起后去有较高的稳定性,
宽大的作业平台和较高的承载能力,使高空作业范围更大,并适合多人同时作业,它使高空作业效率更高,安全更有
保障。
Scissors aerial work platform
The Scissors arial work platform is a special equipment that can be widely userd fot the purpose of working high
above the groud. It's sciessors-like machanical structure gives the platform a high stability when it is lifted up. The
spacious work platform and high bearing capacity have enlarged the aerial service scope of the platform and make
it suitable for serveral persions working together simultaneously. With the equipm entaerial work will be done more
efficiently and more safely
产品特点:
<!--[if !supportLists]--> <!--[endif]-->举起结构采用高强度锰钢矩形管制作
<!--[if !supportLists]--> <!--[endif]-->防止升降台超载的安全保护装置
<!--[if !supportLists]--> <!--[endif]-->防止液压管路爆裂的安全保护装置
<!--[if !supportLists]--> <!--[endif]-->停电等情况下的应急下降装置
<!--[if !supportLists]--> <!--[endif]-->中国人民保险公司产品质量责任保险
Characteristics of products
<!--[if !supportLists]--> <!--[endif]-->The main structure of high-strength manganese steel
<!--[if !supportLists]--> <!--[endif]-->protection device against overloading
<!--[if !supportLists]--> <!--[endif]-->Protection device against dropping
<!--[if !supportLists]--> <!--[endif]-->urgent descending device
<!--[if !supportLists]--> <!--[endif]-->liability insurance of product quality by PICC
产品型号与参数:
型号 |
额定载荷kg |
最大高度mm |
最低高度mm |
台面尺寸mm |
超升时间s |
电机功率kv |
电源电压v |
整机重量kg |
SJY-0.3-3 |
300 |
3000 |
770 |
1300 x 700 |
20 |
0.55 |
380V/50Hz |
400 |
SJY-0.48-4.5 |
480 |
4500 |
950 |
1400 x 850 |
30 |
0.75 |
380V/50Hz |
500 |
SJY-0.3-6 |
300 |
6000 |
950 |
1800 x 880 |
58 |
0.75 |
380V/50Hz |
800 |
SJY-0.48-6 |
480 |
6000 |
1130 |
1800 x 880 |
60 |
0.75 |
380V/50Hz |
950 |
SJY-0.3-7.5 |
300 |
7500 |
1280 |
1800 x 1000 |
64 |
1.1 |
380V/50Hz |
1100 |
SJY-0.3-9 |
300 |
9000 |
1330 |
1800 x 1000 |
74 |
1.5 |
380V/50Hz |
1100 |
SJY-0.48-9 |
480 |
9000 |
1600 |
1800 x 1000 |
81 |
1.5 |
380V/50Hz |
1200 |
SJY-0.3-11 |
300 |
11000 |
1630 |
2100 x 1150 |
93 |
1.5 |
380V/50Hz |
1600 |
SJY-0.48-11 |
480 |
11000 |
1630 |
2100 x 1150 |
105 |
1.5 |
380V/50Hz |
1650 |
SJY-0.3-12 |
300 |
12000 |
1780 |
2450 x 1350 |
110 |
2.2 |
380V/50Hz |
2300 |
SJY-0.48-12 |
480 |
12000 |
1780 |
2450 x 1350 |
115 |
2.2 |
380V/50Hz |
2350 |
SJY-0.3-14 |
300 |
14000 |
1980 |
2450 x 1350 |
124 |
2.2 |
380V/50Hz |
2700 |
SJY-0.48-14 |
480 |
14000 |
1980 |
2450 x 1350 |
130 |
2.2 |
380V/50Hz |
2750 |
SJY-0.3-16 |
300 |
16000 |
2000 |
2750 x 1500 |
145 |
3 |
380V/50Hz |
3000 |
SJY-0.48-16 |
480 |
16000 |
2000 |
2750 x 1500 |
152 |
3 |
380V/50Hz |
3100 |
SJY-0.3-18 |
300 |
18000 |
2000 |
3200 x 1600 |
155 |
4 |
380V/50Hz |
3500 |
提示:以下设备为特种设备,使用单位应向有关部门办理相关手续。 |
||||||||
SJY-1-4.5 |
1000 |
4500 |
1350 |
1500 x 1000 |
35 |
1.5 |
380V/50Hz |
700 |
SJY-1-6 |
1000 |
6000 |
1500 |
1800 x 1000 |
65 |
2.2 |
380V/50Hz |
1200 |
SJY-1-9 |
1000 |
9000 |
1780 |
2000 x 1200 |
75 |
3 |
380V/50Hz |
1900 |
SJY-1-12 |
1000 |
12000 |
1860 |
2500 x 1500 |
120 |
3 |
380V/50Hz |
3300 |
SJY-1-14 |
1000 |
14000 |
2030 |
2500 x 1500 |
128 |
4 |
380V/50Hz |
3600 |
升降机动力选配
<!--[if !supportLists]--> <!--[endif]-->升降台动力选配
<!--[if !supportLists]--> <!--[endif]-->交流380V电源(常规配置)交流220V
<!--[if !supportLists]--> <!--[endif]-->电源直流
<!--[if !supportLists]--> <!--[endif]-->电源手动液压泵动力
<!--[if !supportLists]--> <!--[endif]-->手动/电源两用动力
<!--[if !supportLists]--> <!--[endif]-->AC-380V power supply(of common size)
<!--[if !supportLists]--> <!--[endif]-->AC-220V power supply
<!--[if !supportLists]--> <!--[endif]-->DC power supply
<!--[if !supportLists]--> <!--[endif]-->Annual hydraulic power
<!--[if !supportLists]--> <!--[endif]-->Manual/ electical power supper
,
